In Stock

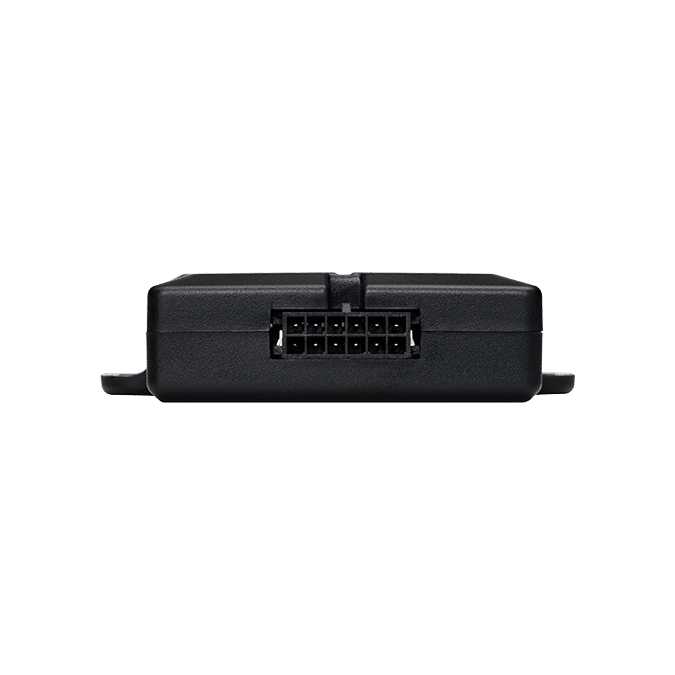

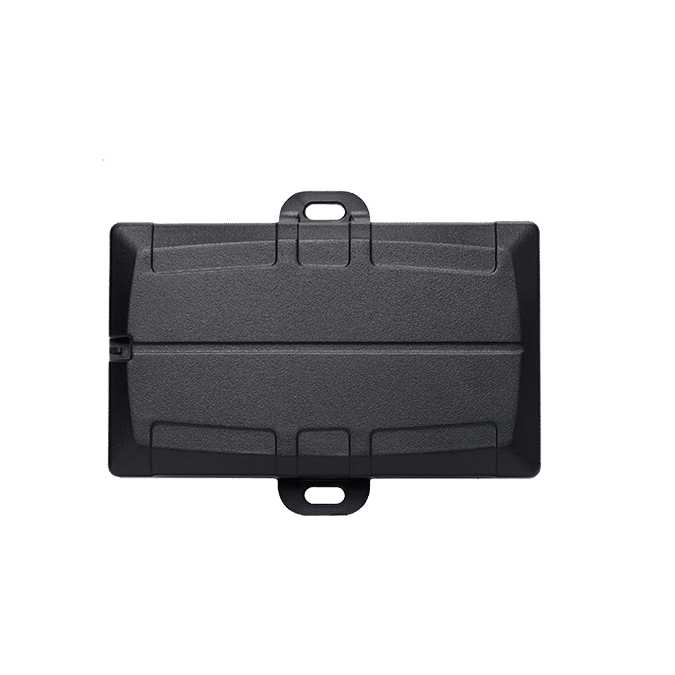

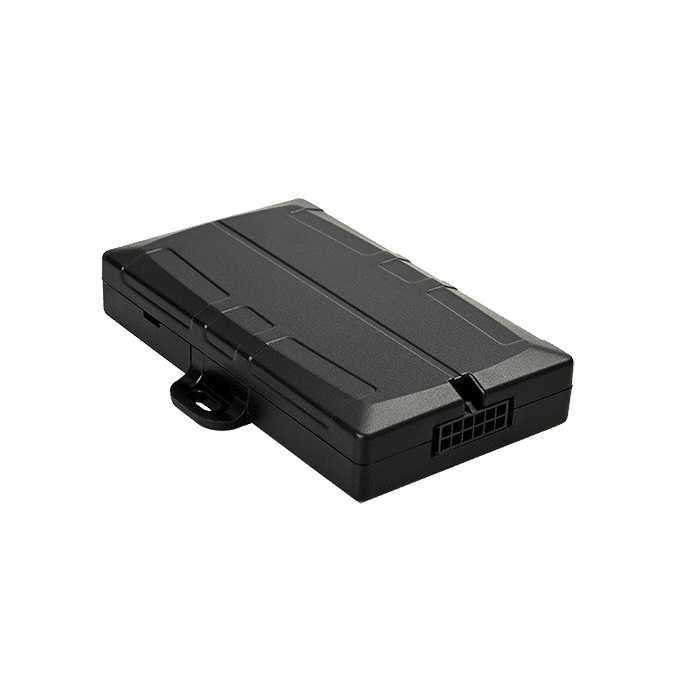

Wired Tracker
Robust and affordable vehicle tracking device with inputs/outputs, remote immobilization for fleet management, driver ID, driver safety and behavior monitoring, theft recovery, and more
- High-performance, high-precision GPS tracking device
- Wire into power for real-time tracking
- Bluetooth® gateway to report on BLE tags and sensors, wireless Driver ID
- 1 x Ignition Digital Input, 3 x Digital Inputs, 1 x Analog Input, 1 x Switched Ground Digital Output, Switched Power Out
- Supports Accident Detection, Driver ID, Driver Behavior, Remote Immobilization
- Backup battery in case of loss of power or tampering
- Cellular LTE-M (Cat-M1)/NB-IoT Connectivity
Specs
SIM Size & Access
:
Internal Micro 3FF SIM
Bluetooth® Gateway
:
Bluetooth 5.2 gateway reports nearby Bluetooth tags and sensors.
Backup Battery
:
3.7V 300mAh LiPo internal backup battery pack.
Dimensions
:
99 x 76 x 19 mm (3.90 x 2.99 x 0.75 in)
Installation
:
12 wire harness / 1m length supplied as standard. OBDII and Cigarette Lighter harness options available for quick and easy (or temporary) installs.
3-Axis Accelerometer
:
3-Axis Accelerometer to detect movement, high G-force events, and more.
Onboard Speed and Heading
:
The device continuously monitors speed and heading, allowing for over-speed alerts as well as updates on speed and heading changes.
Onboard Temperature
:
Provides ambient temperature but may not be suitable for precise temperature logging purposes.
Analog Input
:
1 x Analog Input 0-40V
Digital Inputs
:
3* x Digital Inputs with configurable pull-up/down 0-48V DC input range On/Off thresholds: Pull-up enabled: low at 0.4V, high at 1.9V Pull-down enabled: low at 0.8V, high at 2.2V. Can be used for pulse counting *Digital Input 3 pin shared with Driver ID. Cannot be used in conjunction with Wiegand or TTL readers.
Digital Outputs
:
1 x Switched Ground Digital Output – 2A max Easily wired up to switch external lights, relays, buzzers, etc. Can be used to immobilize a vehicle.
Ignition
:
1 x dedicated ignition Digital Input 0-48V DC 2.2V on/off threshold May be used as a digital input if not required
Switched Power Out
:
3-5Vout Max current 500mA
1-Wire® or iButton®
:
1-Wire® or iButton® can be used to read Driver ID tags. Readers available to suit multiple card formats
Smarts
Accident and Rollover Detection
:
Configure accident and rollover alerts, triggered by extreme changes in the velocity and orientation of the vehicle or equipment. Up to 2 hours of second-by-second ‘black box’ data is stored to provide critical accident reconstruction data
Driver ID Options
:
Bluetooth®, RFID reader, iButton®, or Wiegand interface for Driver ID, access control, and log booking.
Driver Safety and Behavior
:
Monitor speeding, harsh acceleration, braking, cornering, idle times and more to improve safety and prevent unnecessary wear on vehicles.
Flexible Input Monitoring
:
Interface with a range of devices and switches for seatbelt detection, duress and panic buttons, lights, in-cab warning buzzers, and more.
GPS Jamming Detection
:
GPS jamming or interference can be detected and alerted on.
In-Vehicle Alerts
:
Can be wired up to external buzzers or lights for in-vehicle alerts
Onboard Geofencing
:
Geofences can be downloaded directly to the device for enhanced location-based actions and alerts
Preventative Maintenance
:
Set reminders based on distance travelled and run hours to reduce maintenance and repair costs.
Device remains continuously connected while on the move for real-time asset tracking.
:
Device remains continuously connected while on the move for real-time asset tracking.
Remote Immobilization
:
Digital outputs can be connected to a relay to enable remote immobilization of vehicles and equipment in the case of theft, abuse, or unauthorized usage. NOT all vehicles can utilise this functionality
Run Hour Monitoring
:
Calculate run hours and distance travelled (odometer) to understand and optimize asset utilization
Tamper Alerts
:
Instant alert if the device is disconnected from its power source.
Theft Recovery
:
Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.
