Medium Sized Battery Tracker - Edge
In Stock

Medium Sized Battery Tracker - Edge

Ultra-rugged, Indoor/Outdoor battery-powered GPS asset tracking device and Bluetooth® Gateway. Features cloud-based location solving for 10+ years of battery life.

  • GNSS (GPS/BeiDou), Wi-Fi AP MAC Address Scanning, and Cell Tower location for indoor/outdoor asset management
  • Bluetooth® 5.2 Gateway for tagged asset management and sensor monitoring
  • Deploy-once battery life with up to 10+ years on only 3 x AA user-replaceable batteries
  • Cloud-based location solving (versus on-device) for substantial power savings
  • Tracks assets when they’re on the move and enters sleep mode when stationary to save power
  • ‘Battery Low’ and ‘Battery Critical’ alerts

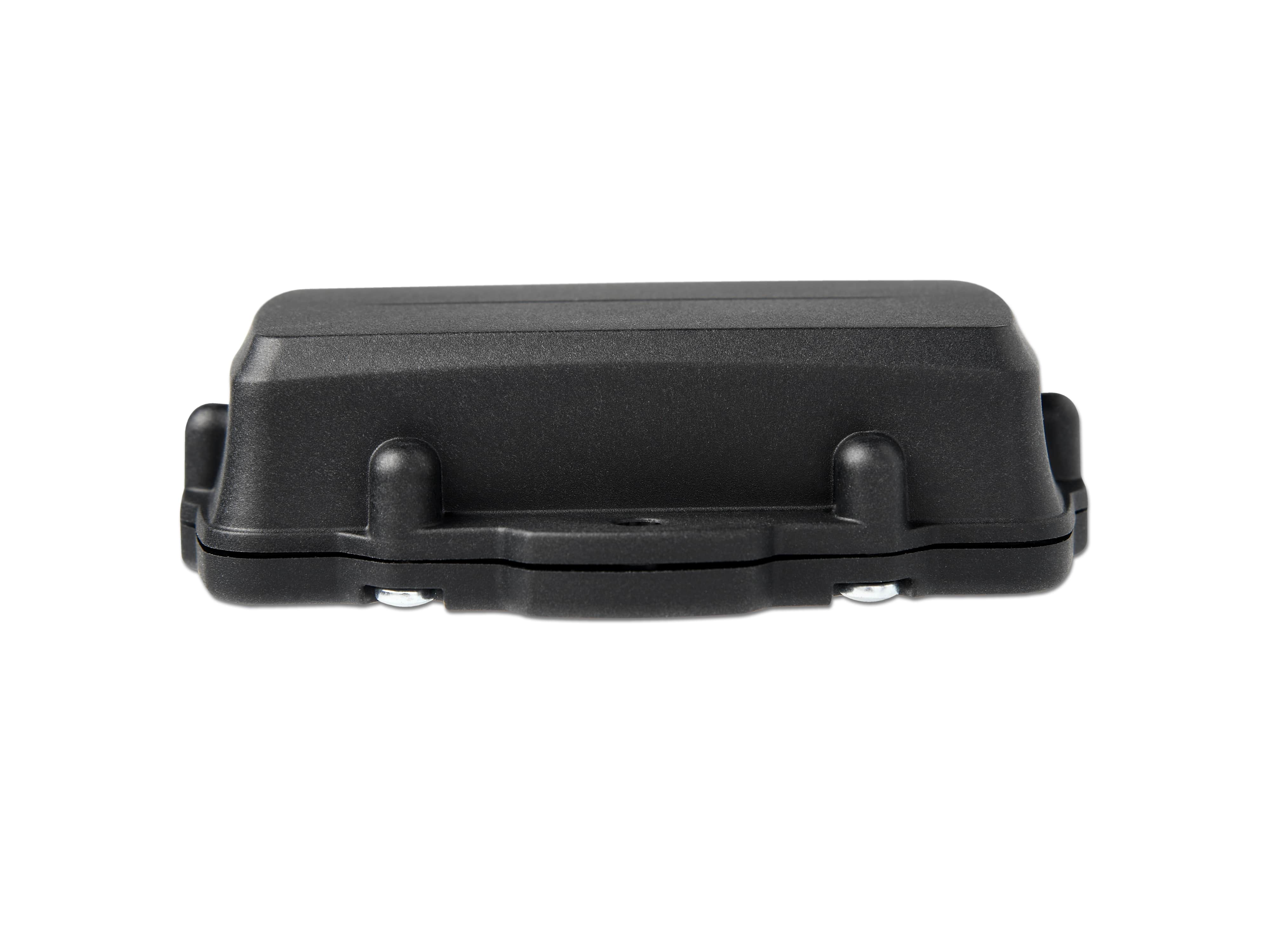

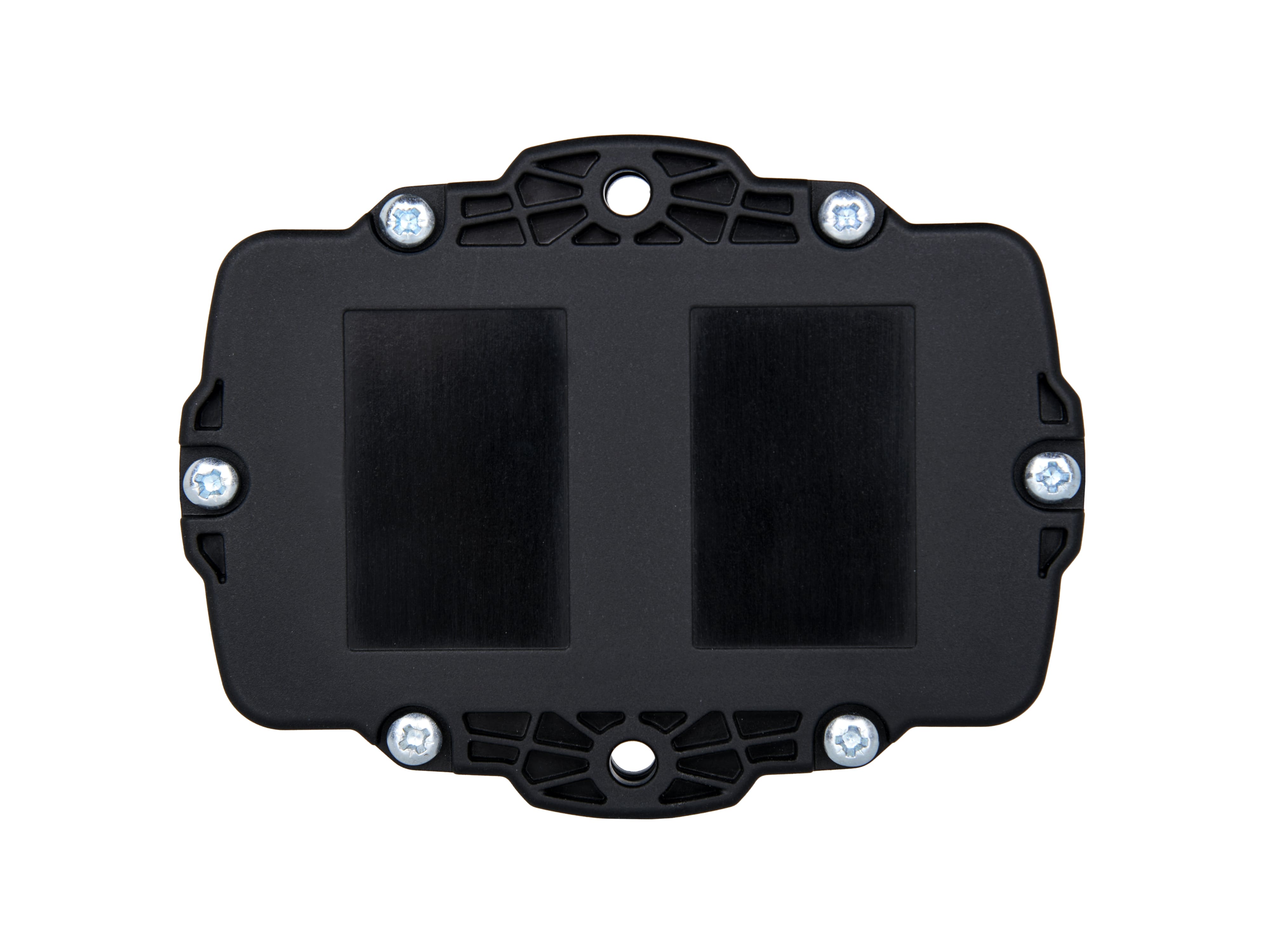

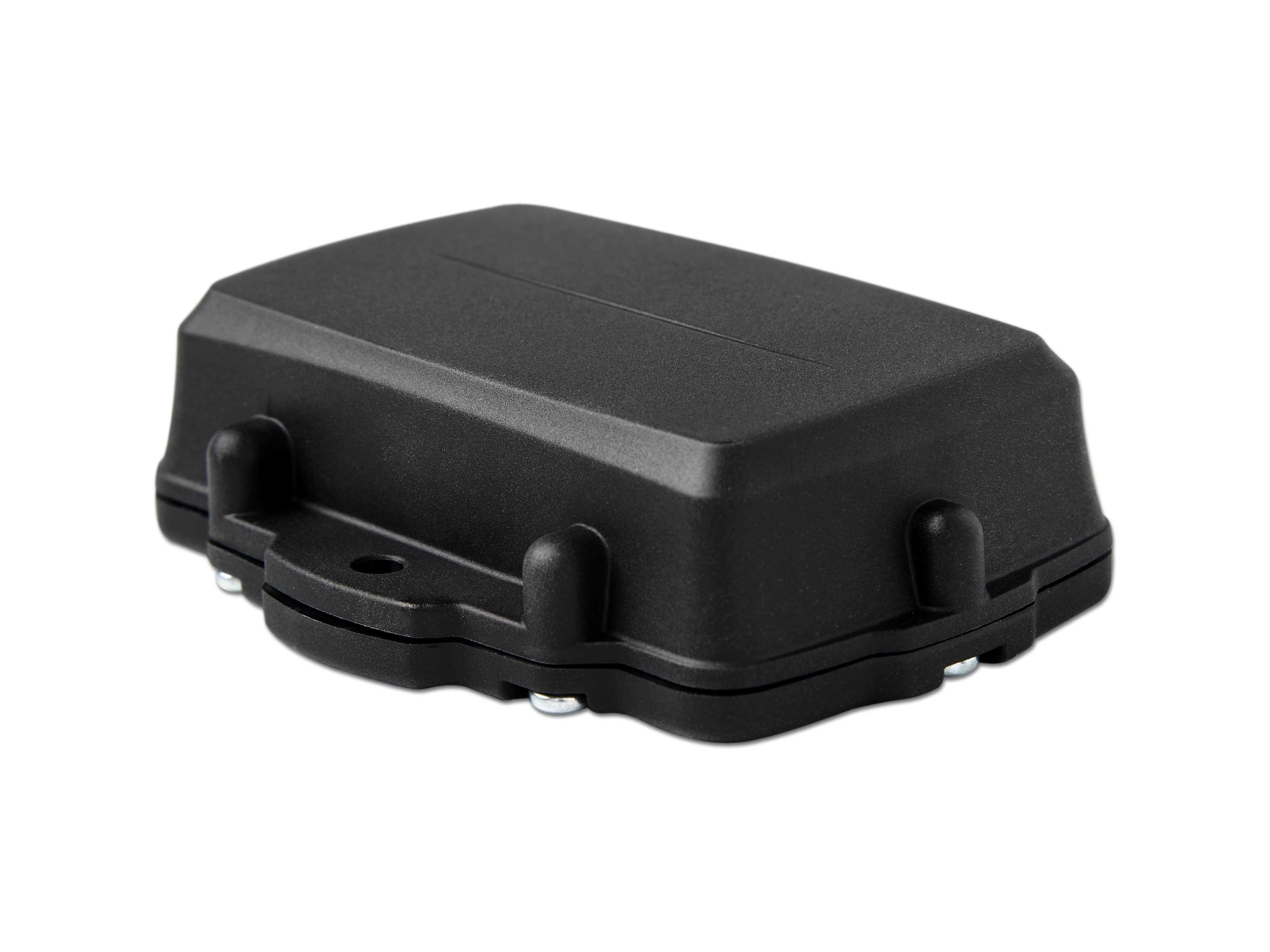

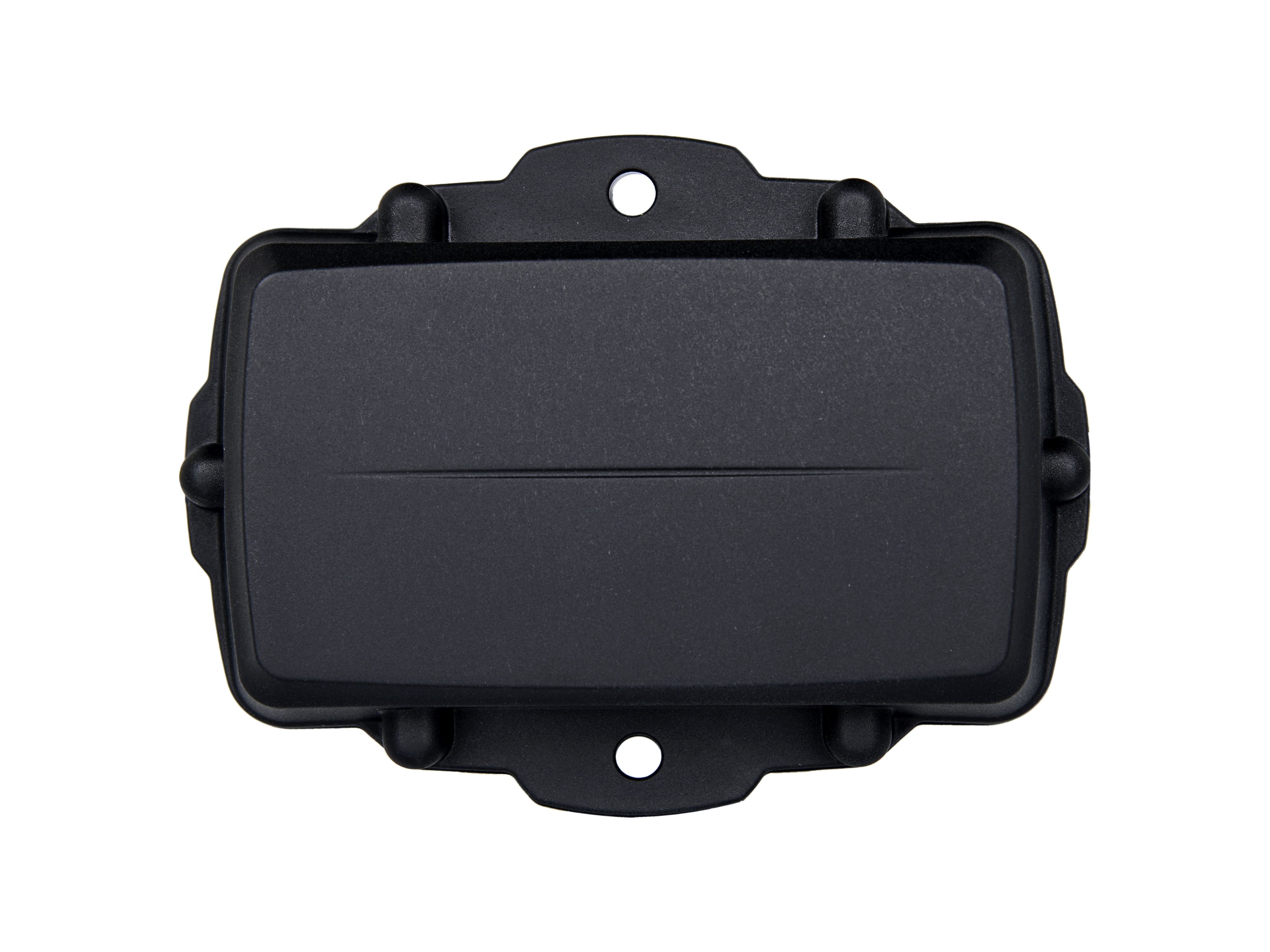

  • Weatherproof and ultra-rugged IP68, IK07 housing
  • LTE-M / NB-IoT Connectivity







Spec

SIM Size & Access : Internal Nano 4FF SIM
Batteries : 3 x AA. Batteries not included.
Supported Battery Types : Lithium (LiFeS2) - recommended for best performance
Dimensions : 108 x 86 x 30 mm (4.25 x 3.39 x 1.18)
IP/IK Rating : Ultra-rugged and waterproof IP68 and IK06-rated housing
3-Axis Accelerometer : 3-Axis Accelerometer to detect movement, high G-force events
Onboard Speed and Heading : Current speed and heading is reported with each position update
Onboard Temperature : The device reports internal temperature which provides an indication of ambient temperature but may not always be precise
Wi-Fi Positioning : Indoor asset location using Wi-Fi access point scanning (device does not connect to Wi-Fi)
Bluetooth® : Bluetooth 5.2 gateway reports nearby Bluetooth tags and sensors for affordable tagged asset management and sensor monitoring (Beaconing support planned)

Smarts

Battery Life Monitoring : "Battery Low” and “Battery Critical” alert level
Geofence Alerts : create geofences and alerts if an asset enters or leaves designated locations
Impact Detection : Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold
Preventative Maintenance : Set reminders based on distance traveled and run hours to reduce maintenance and repair cost
Run Hour Monitoring : Capture run hours based on movement to understand and optimize asset utilization
Theft Recovery : Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval
Tip Detection & Rotation Counting : Axis angle reporting, tip detection and rotation counting
Sleep Mode : Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage
Periodic or Movement-Based Tracking : Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary
Onboard Geofencing : Geofences can be downloaded directly to the device for enhanced location-based actions and alerts. Maximum of 500 Geofences with up to 100 points per geofence
Rotation Counting : Keeps a count of the number of rotations of the device about the Z axis
