In Stock
Small Long Sized Battery Tracker - Edge
Low-cost battery-powered indoor/outdoor asset tracker for LTE-M/NB-IoT networks
- Indoor/Outdoor – GNSS, Wi-Fi AP MAC Address Scanning, and Cell Tower location for indoor/outdoor asset management

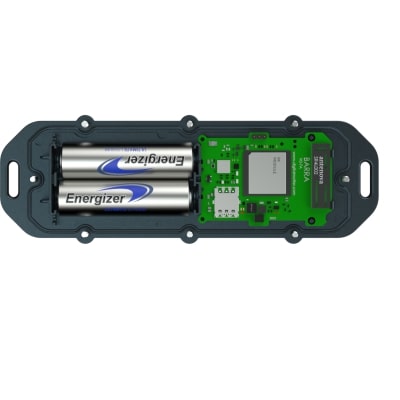

- Deploy-Once battery life with 10+ years on only 2 x AA user-replaceable batteries
- Cloud-based Location Solving (versus on-device) for substantial power savings
- Magnetic Switch for Device Activation and Tamper Detection
- Slim Form Factor and Ultra-Rugged IP68, IK07 housing
- LTE-M/NB-IoT Connectivity
Spec
SIM Size & Access
:
Internal Nano 4FF SIM
Batteries
:
2 x AA. Batteries not included.
Supported Battery Types
:
Lithium (LiFeS2) - recommended for best performance
Dimensions
:
149 x 51 x 21 mm (5.9 x 2 x 0.8 in)
IP/IK Rating
:
Ultra-rugged and waterproof IP68 and IK06-rated housing
3-Axis Accelerometer
:
3-Axis Accelerometer to detect movement, high G-force events
Magnetic Switch
:
Magnetic switch enables quick activation and tamper detection
Smarts
Wi-Fi Positioning
:
Indoor asset location using Wi-Fi access point scanning (device does not connect to Wi-Fi)
Battery Life Monitoring
:
"Battery Low” and “Battery Critical” alert level
Geofence Alerts
:
create geofences and alerts if an asset enters or leaves designated locations
Impact Detection
:
Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold
Preventative Maintenance
:
Set reminders based on distance traveled and run hours to reduce maintenance and repair cost
Run Hour Monitoring
:
Capture run hours based on movement to understand and optimize asset utilization
Theft Recovery
:
Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval
Tip Detection & Rotation Counting
:
Axis angle reporting, tip detection and rotation counting
Sleep Mode
:
Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage
Periodic or Movement-Based Tracking
:
Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary
